Endoscope Bending Section

Home » Endoscope Parts & Accessories » Endoscope Bending Section

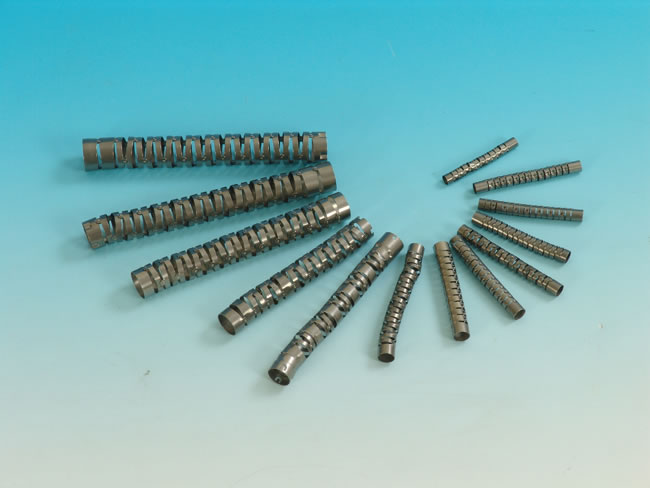

Endoscope Bending Section

As a specialized endoscope bending section manufacturer and supplier in China, Yanshun Endoscopes also provides control handle & light glass connector, industrial videoscopes, wireless infrared night vision videoscopes, disposable cleaning brush, and much more.

Specifications

Endoscope Bending Section
Part No. OD (mm) Length (mm) Thickness (mm) Articulation Angle Associated Model
OBS086081 8.5 68 0.25 Four-way GIF-XQ240
OBS110104 10.9 111 0.3 CF-240L / AL
OBS110240 10.0 84 0.3 GIF-1T240
OBS100240 11.0 53 0.3 TJF-240
OBS100260 11.0 54 0.3 TJF-260
OBS107240 10.7 110 0.28 CF-240DL
OBS107260 10.7 110 0.28 CF-Q260DL
OBS086260 8.6 68 0.25 GIF-Q260
OBS090145 9.0 72 0.25 GIF-Q145
OBS087180 8.5 68 0.25 GIF-Q180
OBS116160 11.6 113 0.3 CF-Q160AL
OBS116280 11.6 112 0.3 CF-H180AL
OBS116180 11.6 113 0.3 CF-Q180AL
OBS121260 12.1 112 0.3 CF-H260DL
OBS097160 9.7 99 0.25 PCF-160AL
OBS097180 9.7 99 0.25 PCF-Q180AL
OBS093240 9.3 99 0.25 PCF-P240AL
OBS097260 9.7 98 0.25 PCF-Q260AL
BS32002 3.2 29 0.15 Two-way
BS40002 4.0 33 0.15 Two-way
BS45002 4.5 42 0.15 Two-way
BS46502 4.65 39 0.15 Two-way
BS50002 5.0 38 0.15 Two-way
BS50004 5.0 43 0.15 Four-way
BS53002 5.3 41 0.15 Two-way
BS63002 6.3 42 0.2 Two-way
BS63004 6.3 51 0.2 Four-way
BS68004 6.8 55 0.2
BS80004 8.0 66 0.25
BS84004 8.4 75 0.2
BS86004 8.6 75 0.25
BS96004 9.6 70 0.3
BS11004 11 85 0.3
BS11404 11.4 95 0.3
BS12304 12.3 95 0.3
BS12304L 12.3 105 0.3
BS13004 13.0 90 0.3
BS13004L 13.0 105 0.3
